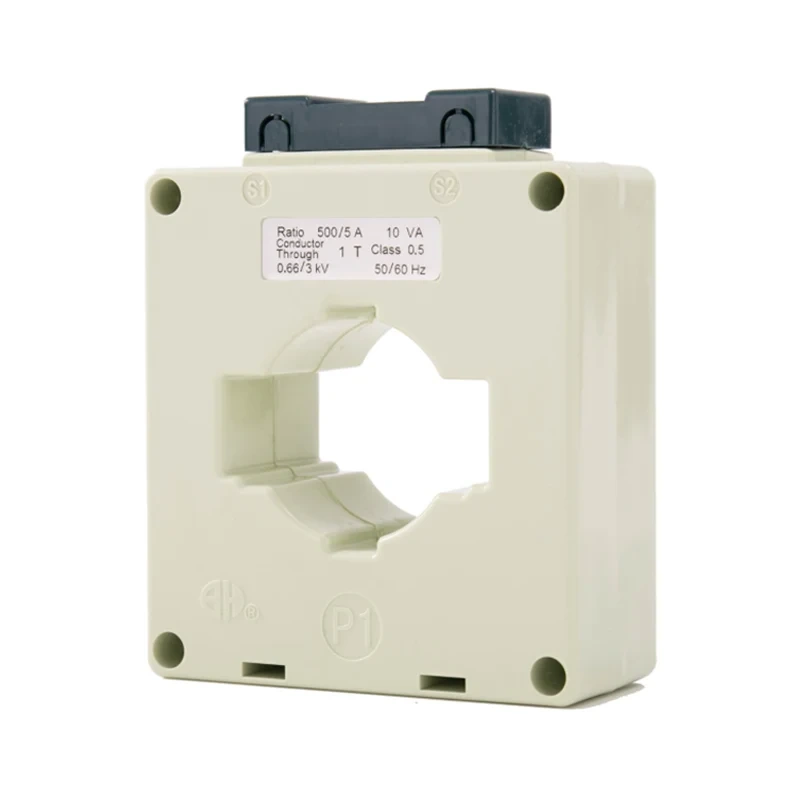

Seri BH-0.66, aku transformer saiki minangka instrumen precision sing dirancang kanggo pangukuran lan pemantauan saka otengan listrik ing macem-macem aplikasi industri. Transformer saiki iki dibangun kanthi bahan bermutu lan teknologi sing berkualitas tinggi kanggo njamin kahanane sing dipercaya lan daya tahan jangka panjang.
Waca rangkeng-. Akurasi sing dhuwur: Seri BH-0.66, saiki wis transformasi sing regane kanthi akurasi sing saiki, supaya cocog kanggo aplikasi kritis ing endi tliti.
Waca rangkeng-. Range aplikasi sudhut: Transformer saiki bisa digunakake ing macem-macem setelan industri, kalebu distribusi tenaga, lan manajemen energi.
Waca rangkeng-. Desain kompak: desain kompak Seri BH-0.66 sing saiki Transformer ngidini gampang instalasi kanthi gampang tanpa kinerja sing kompromi.
Waca rangkeng-. Konstruksi sing kuat: Dibangun kanggo tahan kahanan operasi sing kuat, yaiku transformer saiki awet lan dipercaya sanajan ing lingkungan sing ditantang.
Waca rangkeng-. Integrasi Gampang: Seri BH-0.66 sing saiki wis ana ing integrasi menyang sistem listrik sing ana, nggawe luwih becik kanggo retrofitting utawa upgrade proyek.
Wangun persegi karo jendhela sing nyedhaki bar bus uga minangka aplikasi bis siji utawa multicables.Mas, sing dikebaki, yen ana 30 taun, kanthi lengkap, nalika giliran kabel saiki, nalika giliran kabel kasebut 2 nganti 3.
|

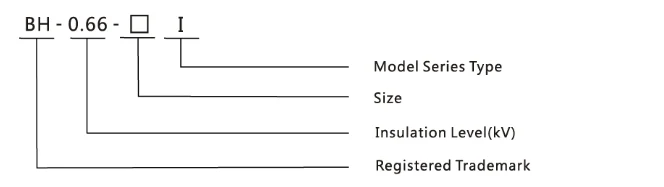

Model |

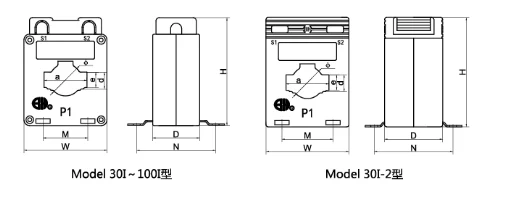

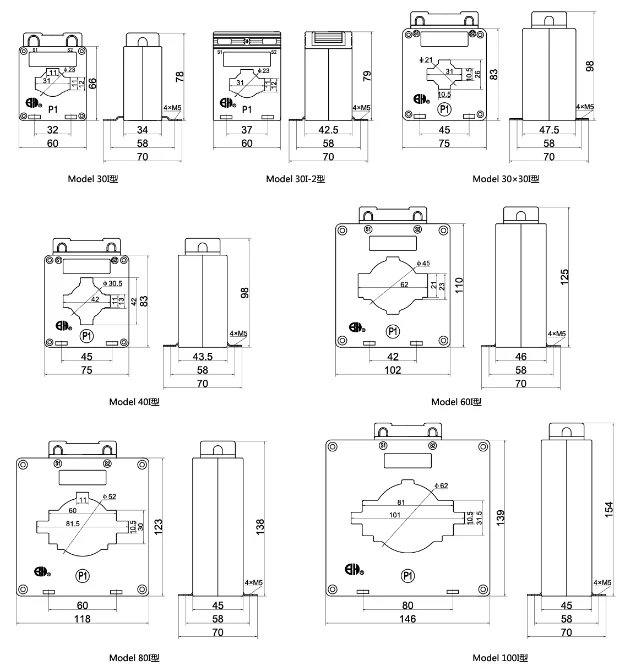

Dimensi Garis (MM) | Ukuran jendela (MM) | Ukuran Instalasi (MM) | Cara Instalasi | ||||||||
| W | H | D | a | e | d | Φ | A | B | ||||
| M | N | M | N | |||||||||
| 30i | 60 | 78 | 34 | 31 | 11 | 12 | 23 | 32 | 58 | 40 | 57 | A B c e |
| 30x30i | 75 | 98 | 47.5 | 31 | 10.5 | 21 | 45 | 58 | 52 | 66 | A B e | |
| 40Aku | 75 | 98 | 43.5 | 42 | 11 | 13 | 30.5 | 45 | 58 | 52 | 66 | A b c e |
| 60Aku | 102 | 125 | 46 | 62 | 21 | 23 | 45 | 42 | 58 | 50 | 69 | A b c e |
| 80i | 118 | 138 | 45 | 81.5 | 10.5 | 30 | 52 | 60 | 58 | A b e | ||
| 100I | 146 | 154 | 45 | 101 | 10.5 | 31.5 | 62 | 80 | 58 | A b e | ||
| 30i-2 | 60 | 79.5 | 42.5 | 31 | 11 | 12 | 23 | 37 | 58 | 45 | 64 | A b e |
| Model | 30i | 30x30i | 40Aku | 60Aku | 80i | 100I | 30i-2 | |
| Diameter kabel | Φ23 | Φ21 | Φ30.5 | Φ45 | Φ52 | Φ62 | Φ23 | |
| Ukuran Bushar Max / Qty | 30x10 / 1 | 30x10 / 1 | 40x10 / 1 | 60x10 / 1 60x6 / 1-2 |
80x10 / 1 60x10 / 1-2 |
100x10 / 1 80x10 / 1-2 |
30x10 / 1 | |
| Kelas akurasi | 0,5 1 | 0,5 1 | 0,5 1 | 0,2 0,5 | 0,2 0,5 | 0,2 0,5 | 0,2s 0,5 1 | |
| Saiki / Secondary Saiki (a) |
Dibukak Burden (VA) | |||||||
| 15 | 5 | 25 (5) | 25 (4) | 2,5 (5) | ||||
| 20 | 25 (4) | 25 (3) | 2,5 (4) | |||||
| 25 | 25 (3) | 25 (2) | 2,5 (3) | |||||
| 30 | 25 (3) | 25 (2) | 2,5 (3) | |||||
| 40 | 25 (2) | 25 (2) | 2,5 (2) | |||||
| 50 | 25 (2) | 2.5 | 2,5 (2) | |||||
| 60 | 25 (2) | 2.5 | 2,5 (2) | 2.5 | ||||
| 75 | 2.5 | 25 5 | 2.5 | 2.5 | ||||
| 100 | 2.5 | 25 5 | 2.5 | 2.5 | ||||
| 150 | 2.5 | 5 10 | 5 | 25 | 2.5 | |||
| 200 | 5 | 10 15 | 5 | 5 | 5 | |||
| 250 | 5 | 15 20 | 5 | 5 | 5 | |||
| 300 | 5 | 20 | 5 | 5 | 5 | 5 | ||
| 400 | 5 | 20 | 5 | 5 | 5 | 5 | ||
| 500 | 10 | 5 10 | 10 | |||||
| 600 | 10 | 5 10 | 5 10 | |||||
| 750 (800) | 10 | 5 10 | 5 10 | 5 10 | ||||
| 1000 | 15 20 | 15 20 | 15 20 | |||||
| 1200 (1250) | 20 | 20 | 20 | |||||
| 1500 | 20 | 20 | 20 | |||||
| 2000 | 20 | 20 | 20 | |||||
| 2500 | 30 | 30 | ||||||
| 3000 | 30 | |||||||
