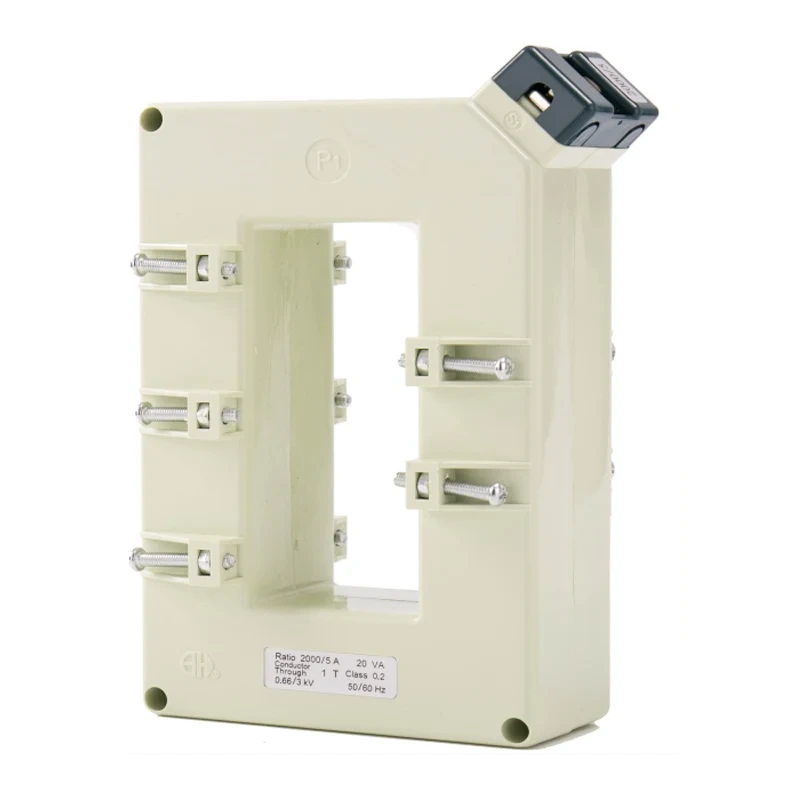

Seri bh-0.66 ⅱ Transformer saiki dirancang kanggo ngukur kanthi akurat lan ndandani arus sing dhuwur menyang nilai-nilai standar kanggo ngawasi lan tujuan kontrol. Kanthi teknik teknologi lan tliti sing canggih, yaiku transformer saiki nawakake kinerja lan kekiatan sing dipercaya ing macem-macem aplikasi industri.
Waca rangkeng-. Akurasi sing dhuwur: Seri BH-0.66 ⅱ Transformer saiki nyedhiyakake pangukuran sing tepat kanthi tingkat akurasi sing dhuwur.
Waca rangkeng-. Aplikasi sudhut: cocog kanggo digunakake ing macem-macem setelan industri, kalebu distribusi tenaga, lan ngawasi peralatan.
Waca rangkeng-. Instalasi Gampang: Dirancang kanggo instalasi lan integrasi sistem sing ana, nyuda biaya downtime lan pangopènan.
Waca rangkeng-. Konstruksi sing kuat: Dibangun kanggo nahan kahanan operasi sing kuat lan njamin linuwih kinerja jangka panjang.
Waca rangkeng-. Selaras: Ndadekake standar internasional kanggo kualitas lan safety, njamin tundhuk karo peraturan industri.
Jendhela persegi panjang (horisontal kanggo cocog karo pirang-pirang bar bus uga kabel. Umume digunakake kanggo instrumen lan metering, kapenuhan epox resin ing Casing.has ukuran patbelas kanthi riso rate range.window bisa diatur kanggo ngrampungake pelanggan sing beda
Syarat.

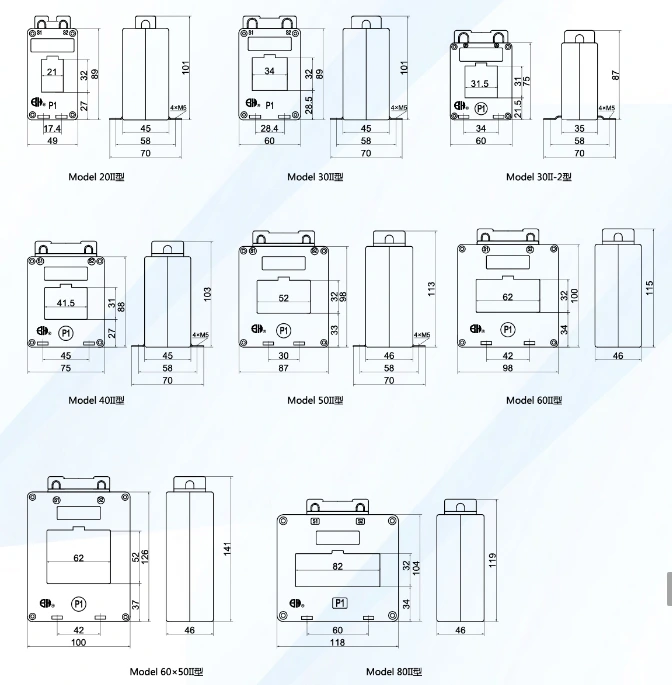

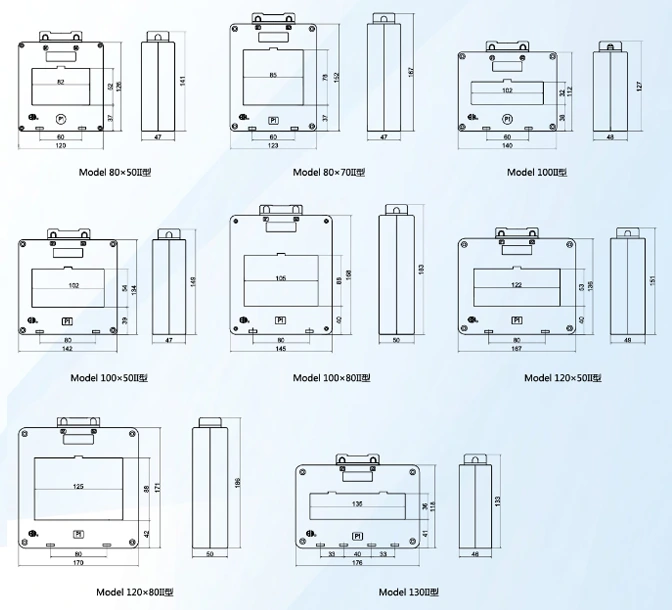

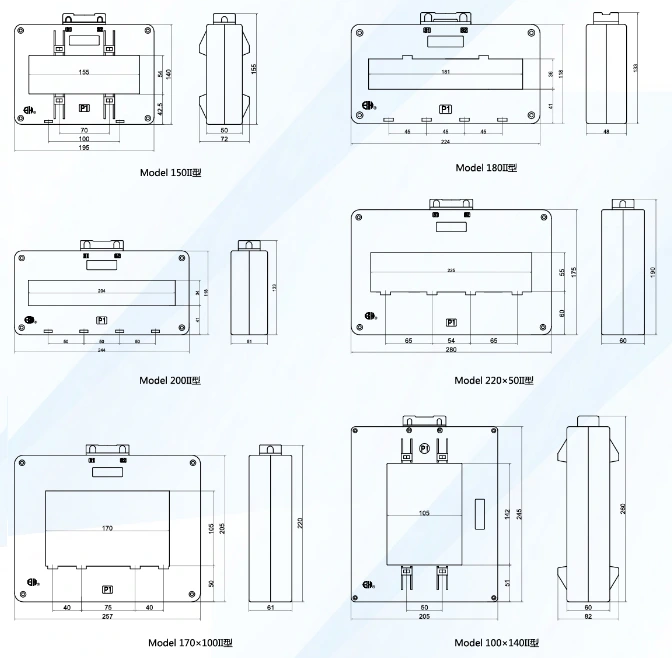

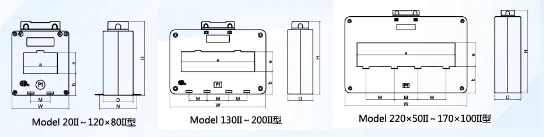

| Model | Dimensi Cutline (MM) | Wdow Dimersion (MM) | Ukuran InstaLasial (MM) | Cara InstaLASIAL | |||||||
| W | H | D | b | a | e | M | N | ||||
| 20II | 49 | 101 | 45 | 27 | 21 | 32 | 17.4 | 58 | |||
| 30II | 60 | 101 | 45 | 28.5 | 34 | 32 | 28.4 | 58 | Ae | ||
| 30I-2 | 60 | 87 | 35 | 21.5 | 31.5 | 31 | 34 | 58 | Ae | ||
| 40II | 75 | 103 | 45 | 27 | 41.5 | 31 | 45 | 58 | Ae | ||
| 50ii | 87 | 113 | 46 | 33 | 52 | 32 | 30 | 58 | Ae | ||
| 60IIII | 98 | 115 | 46 | 34 | 62 | 32 | 42 | E F | |||
| 60x50ii | 100 | 141 | 46 | 37 | 62 | 52 | 42 | E F | |||
| 802 | 118 | 119 | 46 | 34 | 82 | 32 | 60 | E F | |||
| 80x50ii | 120 | 141 | 47 | 37 | 82 | 52 | 60 | E F | |||
| 80x7i | 123 | 167 | 47 | 37 | 85 | 78 | 60 | E F | |||
| 100II | 140 | 127 | 48 | 38 | 102 | 32 | 60 | E f | |||
| 100x50ii | 142 | 149 | 47 | 39 | 102 | 54 | 80 | E F | |||
| 100x80ii | 145 | 183 | 50 | 40 | 105 | 88 | 80 | E F | |||
| 120x50ii | 167 | 151 | 49 | 40 | 122 | 53 | 80 | E F | |||
| 120x80ii | 170 | 186 | 50 | 42 | 125 | 88 | 80 | E F | |||
| 130ii | 176 | 133 | 46 | 41 | 135 | 36 | 33 | 40 | 33 | E F | |
| 150ii | 195 | 155 | 50 | 42.5 | 155 | 54 | 100 | D | |||
| 180ii | 224 | 133 | 48 | 41 | 181 | 36 | 45 | 45 | 45 | E f | |
| 200i | 244 | 133 | 51 | 41 | 204 | 34 | 50 | 50 | 50 | E F | |
| 220x50ii | 280 | 190 | 60 | 60 | 225 | 55 | 65 | 54 | 65 | E f | |
| 170x100ii | 257 | 220 | 61 | 50 | 170 | 105 | 40 | 75 | 40 | E f | |
| 100x140ii | 205 | 260 | 60 | 51 | 105 | 142 | 50 | D | |||
| Model | 20II | 30II | 30I-2 | 40II | 50ii | 60IIII | 60x50ii | 802 | |
| Ukuran Bushar Max / Qty | 20x10 / 1-2 | 30x10 / 1-2 | 30x10 / 1-2 | 40x10 / 1-2 | 50x10 / 1-2 | 60x10 / 1-2 | 60x10 / 2-3 | 80x10 / 1-2 | |
| Kelas akurasi | 0,5 1 | 0,5 1 | 0,5 1 | 0,2 0,5 1 | 02 0,5 | 0,2 0,5 | 0,2 0,5 | 0,2 0,5 | |
| Saiki / Secondary Saiki (a) |
Dibukak Burden (VA) | ||||||||
| 100 | 5 | 2.5 | 25 | 2.5 | 25 | ||||
| 125 | 2.5 | 25 | 2.5 | 2.5 | |||||
| 150 | 25 | 2.5 | 2.5 | 2.5 | 2.5 | ||||
| 200 | 5 | 5 | 5 | 5 | 5 | ||||
| 250 | 5 | 5 | 5 | 5 | 5 | 5 | |||
| 300 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 400 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| 500 | 5 | 5 | 10 | 10 | 10 | 10 | 10 | ||
| 600 | 5 | 5 10 15 | 10 | 10 | 10 | 10 | |||
| 750 (800) | 5 | 5 10 | 5 10 | 5 10 | 5 10 | 5 10 | |||
| 1000 | 15 | 15 | 15 | 15 | 15 | ||||
| 1200 (1250) | 20 | 20 | 20 | 20 | 20 | ||||
| 1500 (1600) | 20 | 20 | 20 | 20 | |||||
| 2000 | 20 | 20 | 20 | ||||||
| 2500 | 30 | 30 | |||||||
