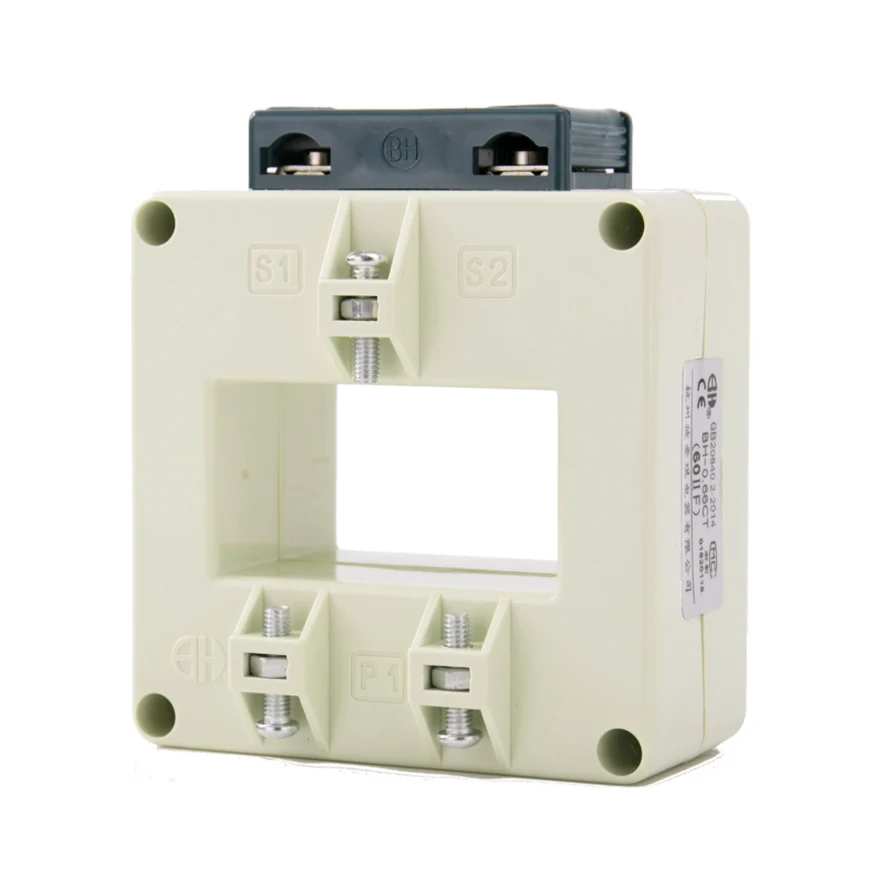

Seri bh-0.66 F Transformer f saiki transformer minangka instrumen precision sing dirancang kanggo pangukuran lan pemantauan saka otengan listrik ing macem-macem aplikasi industri. Transformer saiki iki dibangun kanthi bahan bermutu lan teknologi sing berkualitas tinggi kanggo njamin kahanane sing dipercaya lan daya tahan jangka panjang.
.Patorium akurasi: Seri BH-0.66 F Transformers nawarake akurformer saiki, supaya cocog kanggo aplikasi kritis ing endi precision penting.
.Wide kisaran: Transformer saiki duwe macem-macem pangukuran, saéngga bisa digunakake ing sistem listrik macem-macem tingkat saiki.
.Compact Desain: desain sing kompak lan entheng seri BH-0.66 F Transformer sing gampang diinstal lan nggabungake menyang sistem sing ana.
.Sambung Kinerja: Kanthi linearitas sudut lan kesalahan sudut phase sing kurang, yaiku transformasi saiki iki ngirim kinerja sing konsisten lan dipercaya ing macem-macem kahanan operasi.
.Safet Standar: The BH-0.66 Series F Transformers comply karo standar safety internasional, njamin operasi aman ing lingkungan industri.
Product.flip-Open Caps.Flip.Flips.Fits kanggo bar kabel lan bus .Maily digunakake kanggo instrumen lan metering.
Gabungan lan ningkatake fitur loro seri I lan II.Fincaster sing luwih apik, instalasi sing luwih gampang, instalasi luwih gampang lan kabel wiring.Ihighly.

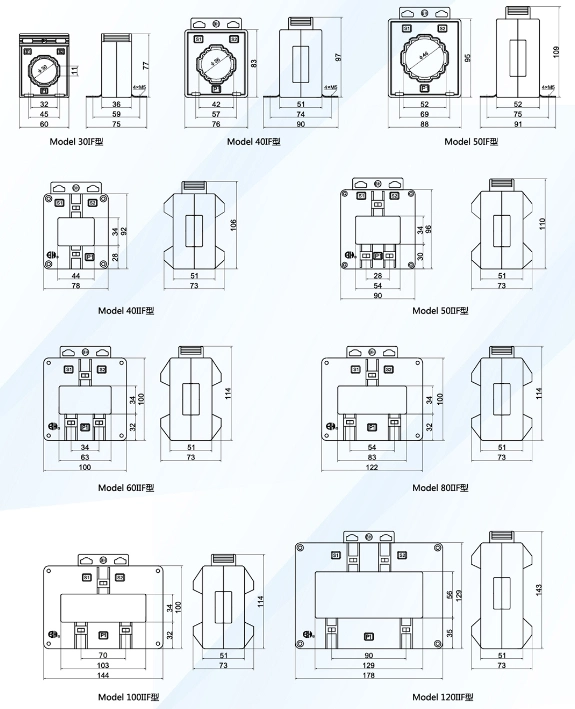

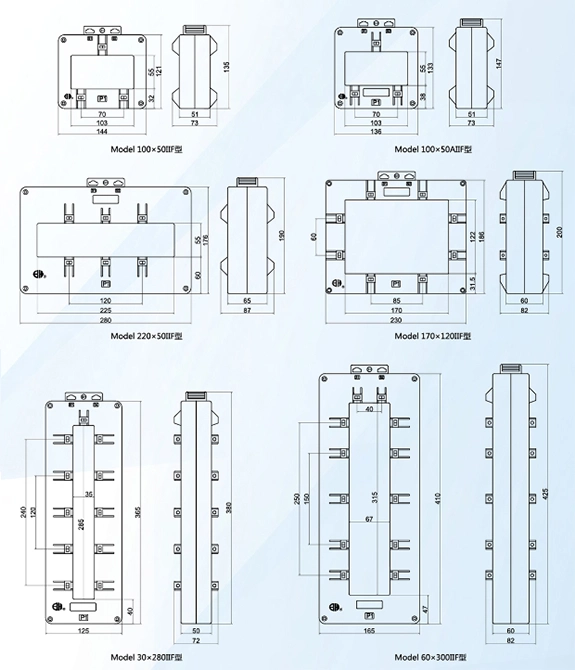

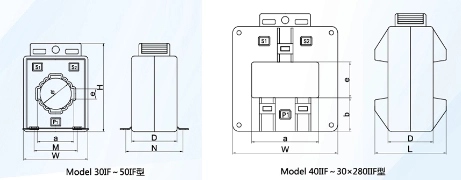

| Model | Dimensi Garis (MM) | Ukuran jendela (MM) | Ukuran Instalasi (MM) | Methed Instalasi | |||||||||
| W | H | b | D | L | a | e | Φ | A | B | ||||
| M | N | M | N | ||||||||||
| 30f | 60 | 77 | 36 | 32 | 11 | 30 | 37 | 57 | 45 | 59 | A b e g | ||
| 401f | 76 | 97 | 51 | 42 | 12 | 36 | 57 | 74 | B e g | ||||
| 50f | 88 | 109 | 52 | 51 | 13 | 46 | 69 | 75 | B e g | ||||
| 40Iif | 78 | 106 | 28 | 51 | 73 | 44 | 34 | D | |||||
| 50Iif | 90 | 110 | 30 | 51 | 73 | 54 | 34 | D | |||||
| 60IF | 100 | 114 | 32 | 51 | 73 | 63 | 34 | D | |||||
| 80sif | 122 | 114 | 32 | 51 | 73 | 83 | 34 | D | |||||
| 100siif | 144 | 114 | 32 | 51 | 73 | 103 | 34 | D | |||||
| 120Iif | 178 | 143 | 35 | 51 | 73 | 129 | 56 | D | |||||
| 100x50iif | 144 | 135 | 32 | 51 | 73 | 103 | 55 | D | |||||
| 100x50aiif | 136 | 147 | 38 | 51 | 73 | 103 | 55 | D | |||||
| 220x50iif | 280 | 190 | 60 | 65 | 87 | 225 | 55 | D | |||||
| 170x120IIIH | 230 | 200 | 31.5 | 60 | 82 | 170 | 122 | D | |||||
| 60x300IIIF | 165 | 425 | 47 | 60 | 82 | 67 | 315 | D | |||||
| 30x280IIF | 125 | 380 | 40 | 50 | 72 | 35 | 285 | D | |||||
| Model | 30f | 40sif | 50f | 40Iif | 50Iif | 60IF | 80sif | 100siif | |
| Diameter kabel | Φ30 | Φ36 | Φ46 | ||||||
| Ukuran Bushar Max / Qty | 30x10 / 1 | 40x10 / 1 | 50x10 / 1 | 40x10 / 1-2 | 50x10 / 1-2 | 60x10 / 1-2 | 80x10 / 1-2 | 100x10 / 1-2 | |
| Kelas akurasi | 0,5 1 | 0,5 1 | 0,2 0,5 | 0,2 0,5 | 02 0,5 | 0,2 0,5 | 0,2 0,5 | 0,2 0,5 | |
| Saiki / Secondary Saiki (a) |
Dibukak Burden (VA) | ||||||||
| 15 | 5 | 25 (5) | 2,5 (5) | ||||||
| 20 | 2,5 (4) | 2,5 (4) | |||||||
| 25 | 25 (3) | 2,5 (3) | |||||||
| 30 | 25 (3) | 2,5 (3) | |||||||
| 40 | 25 (2) | 2,5 (2) | |||||||
| 50 | 25 (2) | 2,5 (2) | |||||||
| 60 | 25 (2) | 2,5 (2) | |||||||
| 75 | 2.5 | 2.5 | |||||||
| 100 | 2.5 | 2.5 | |||||||
| 150 | 25 | 2.5 | |||||||
| 200 | 5 | 5 | 5 | 5 | |||||
| 250 | 5 | 5 | 5 | 5 | 5 | 5 | |||
| 300 | 5 | 5 | 5 | 5 | 5 | 5 | |||
| 400 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | ||
| 500 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | ||
| 600 | 10 | 5 10 | 5 10 | 5 10 | 5 10 | 5 10 | 5 10 | ||
| 750 (800) | 10 | 5 10 | 5 10 | 5 10 | 5 10 | 5 10 | 5 10 | ||
| 1000 | 15 | 15 | 15 | 15 | 15 | 15 | |||
| 1200 (1250) | 20 | 20 | 20 | 20 | 20 | 20 | |||
| 1500 (1600) | 20 | 20 | 20 | 20 | 20 | ||||
| 2000 | 20 | 20 | 20 | ||||||
| 2500 | 30 | 30 | |||||||
| 3000 | 30 | ||||||||
